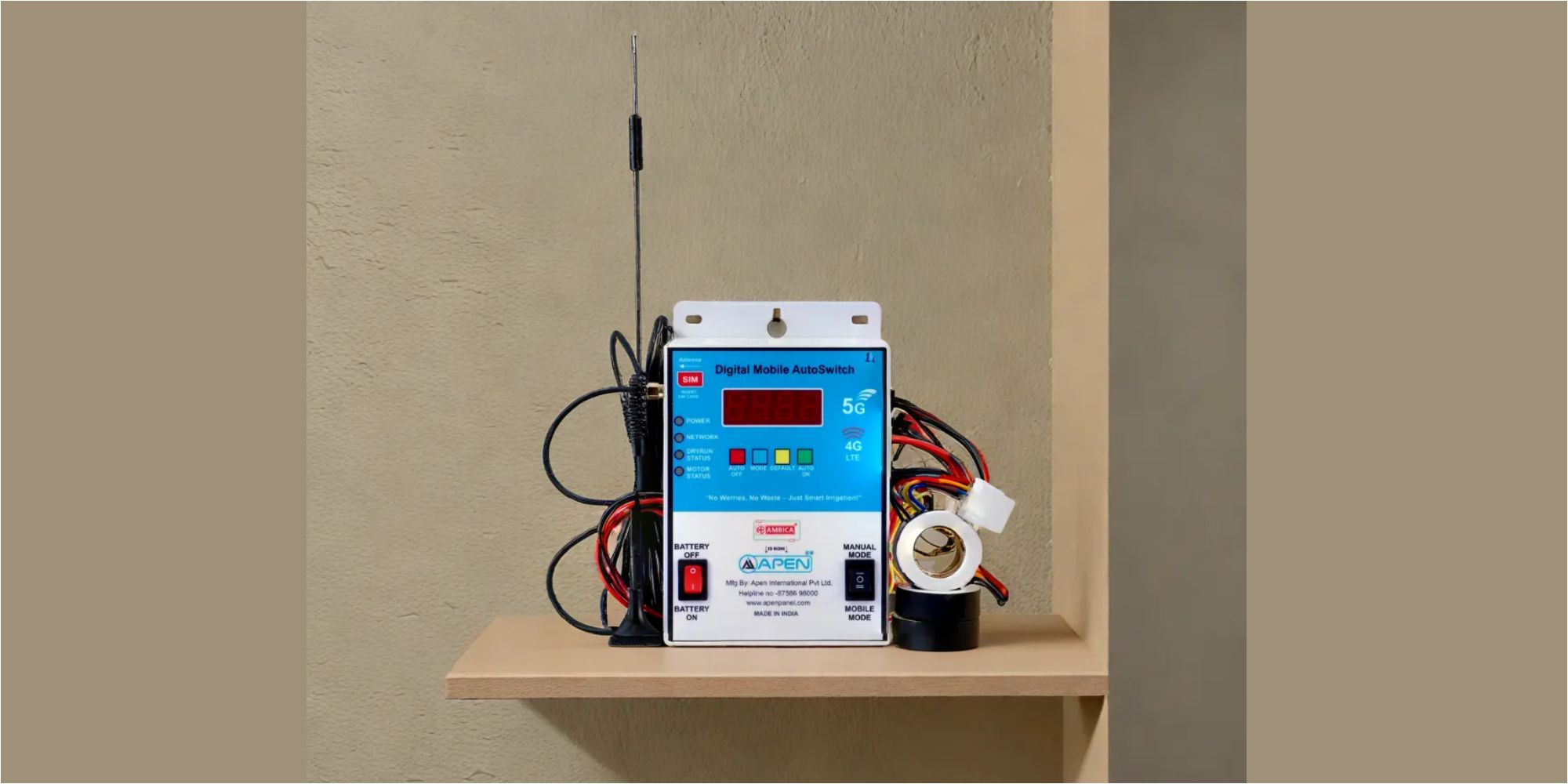

Digital GSM Mobile Auto Switch 5G

Digital GSM Mobile Auto Switch 5G

Order on WhatsApp



---

 Specifications –Three Phase Digital GSM Mobile Auto Switch (5G)

✅ Remote Motor Control

• Control your motor from anywhere in the world via mobile calls and SMS.

• Receive real-time updates on motor status directly on your phone.

✅ Advanced Protection Features

• Phase Protection: Auto shut-off in case of phase fault, phase reversal, or unbalance.

• Overload & Voltage Safety: Motor automatically stops in case of high/low voltage, coil overload, or contactor jam.

• Short Circuit Protection: Instant shutdown during phase short or stator phase fault.

• Bearing & Blockage Alerts: Notifies if motor bearing jams or if impeller/rotor gets stuck.

✅ Intelligent Monitoring

• Equipped with 3 CT Coils for precise reverse current measurement.

• Auto Reverse Timer with adjustable interval.

• Digital Display: Shows voltage, current, dimming range, and fault details.

• 24-Hour Battery Backup for uninterrupted operation.

• Sends periodic motor & power status updates via call and SMS.

✅ Smart Operation

• ON Delay Timer: Adjustable for both DOL and Star-Delta starters.

• Auto Scheduling: Motor can turn ON/OFF automatically at your preferred times.

• Line Voltage Gap Setting for optimized performance.

• Smooth Power Alerts: Notifies when supply is stable or interrupted.

✅ Security Features

• Self-Locking System: Ensures protection if the GSM unit is stolen.

• Works like a regular auto switch during manual operation.



---

 Precautions for Using Three Phase Digital GSM Mobile auto switch

1. Power Supply Safety

   • Always switch off the main power supply before installing or servicing the GSM Mobile Starter.

2. SIM Card Selection & Activation

   • Supported networks: Jio, Airtel, BSNL, Idea, Vodafone (VI).

   • Choose the SIM card with the best signal coverage in your area.

   • Activate the SIM card as per the operator’s instructions and keep it recharged regularly.

3. SMS & Call Configuration

   • Ensure the GSM Mobile Starter is properly configured to send/receive SMS and calls regarding motor status or faults.

   • Maintain sufficient balance in the SIM card at all times.

4. Network Coverage Optimization

   • If network coverage is weak, use a 3-phase line wire as an external antenna.

   • Keep the antenna sides apart and mount it at a higher elevation for better signal reception.

---
